HD PocketView™
HDMI Compact / Portable Display and Tester

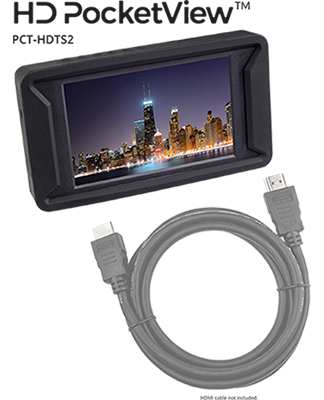

PCT-HDTS2 HD PocketView™


Rugged Field Monitor Replaces Technicians’ Test TVs in Trucks

Portable AV HDMI Tester

PCT has developed the HD PocketView™, a portable, commercial grade monitor, built to work with HDMI protocols. The unit auto-scales any signals to 1080p and works with most popular STB units up to 4 K / 60 Hz.  When connected, the source EDID (Extended Display Identification Data) sends appropriate signals to the HD PocketView to decode. Technicians will close work orders faster with the HD PocketView, validating services / tiers even on new installs lacking displays. Portable and rugged, this small, battery powered device also eliminates the need to carry around bulky TVs.

Features and Benefits

The HD PocketView™ compact display is built rugged for the rigors of everyday installation wear and tear. It is water, shock and shatter resistant to MIL-STD-810G standards.

  • Technical Performance
    1080P Autoscale Display
    HDMI Test Port In
    Micro USB with Charging LED (charger and cable are included)
    2300 mAH Battery (reinforced compartment for safe portability)
  • Physical Features
    . Hybrid dual layer (silicone and ABS)
    . Ruggedized, drop resistant housing
    . Water resistant
    Scratch and shatter resistant tempered glass display

General Specifications

Display : 5 inch LCD
Screen Resolution : 800 x 400
Auto Scale Support : 1080p, 1080i, 720p, 480p, 480i
Audio : 8 Ohms, 0.5 W
Volume Control : Push button
Display Input : HDMI Type A
Battery Type : Lithium Ion, 2300 maH, 4 hours continual use
Case : Protective ABS with silicone overmold
Certifications : RoHS, FCC (15b), ASTM, UL
