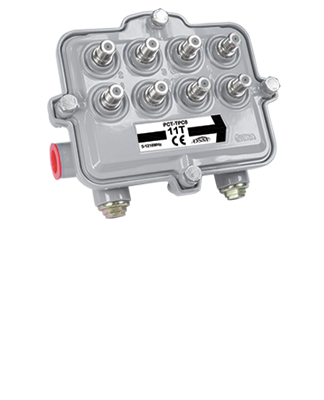

PCT-TPC-x-yy Multi-Tap & Line Passive

Cable telecommunications networks are evolving to accommodate the expanded features of DOCSIS 3.1.  One part of this evolution is the need for greater bandwidth in both the upstream and the downstream direction.  PCT’s 1.25 GHz multitaps are designed to provide the needed additional bandwidth while also providing the ability to tailor the tap output levels.  The added feature of signal level conditioning ensures proper signal levels for DOCSIS 3.1 performance within the customer’s home.

  • DOCSIS 3.1 ready with extended bandwidth and signal level conditioning to interact with both standard and higher output nodes
  • 1.25 GHz bandwidth with minimal insertion loss
  • 110 dB shielding effectiveness (RFI)
  • Uninterrupted power passing design
  • Patented DSM® seizure technology on F ports provides increased spring retention for better surface contact and electrical performance (patent #6450836)
  • Aluminum alloy housing with weather resistant powder coating
  • Weatherproof, self-sealing F ports prevent breathing through ports when subscriber is disconnected
  • Bright acid tin-plated, brass F ports offer increased strength and protection against corrosion in severe environmental conditions
  • Color coded tap values
  • Surge protection at all ports for greater system reliability
  • Conforms to all applicable SCTE standards
